627-497

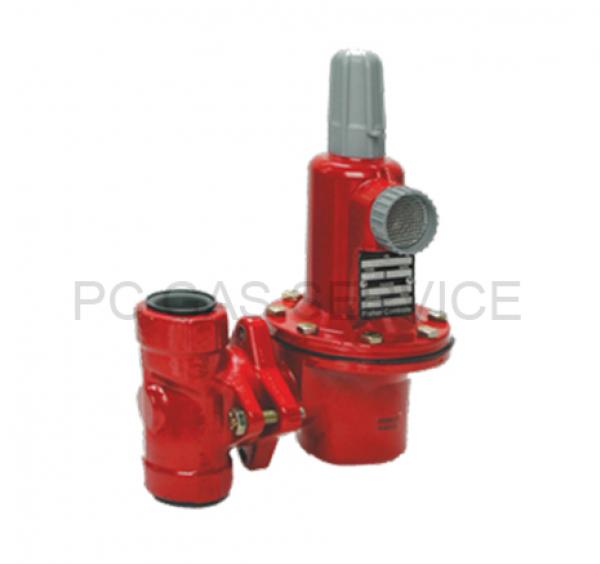

Non-UL listed Type 627 Constructions



Capacities* (propane)   :   14,837,000 BTU/hr, 167 SCMH

Orifice Size   :   1/2 In., 13 mm

Inlet and Outlet Connection   :   1 in. FNPT

Outlet Pressure Range   :   15 to 40 psig, 1.0 to 2.8 bar

Setpoint   :   40 psig, 2.8 bar

Maximum Operating Inlet Pressure   :   250 psig, 17.2 bar



* For Non-UL listed Types 627 and 630 configurations, capacity based on inlet pressure 20 psig / 1.4 bar greater than outlet pressure, Internal registration and 20% droop.
