LV5503B6

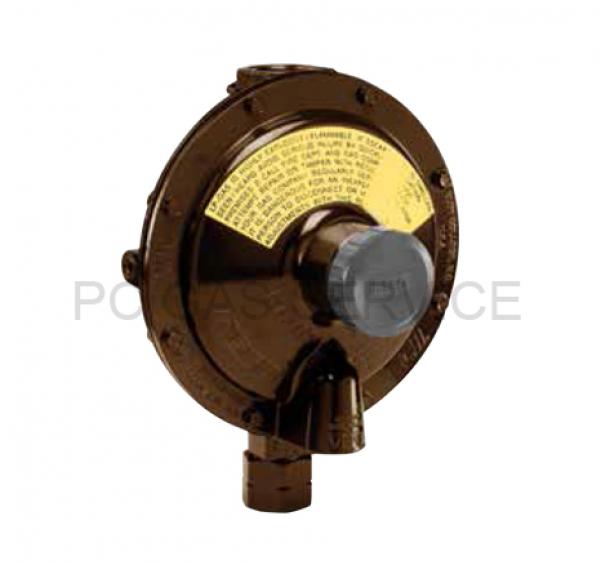

Low Pressure Second Stage Regulators LV5503B Series



Ordering Information

Inlet Connection   :   3/4” F. NPT

Outlet Connection   :   3/4” F. NPT

Orifice Size   :   1/4"

Factory Delivery Pressure   :   11” w.c. at 10 PSIG Inlet

Adjustment Range   :   9” to 13” w.c.

Bonnet Vent Position   :   Over Inlet

Vapor Capacity BTU/ hr. Propane*   :   1,600,000



*Maximum flow based on 10 PSIG inlet and 9” w.c. delivery pressure.
