LV5503B8

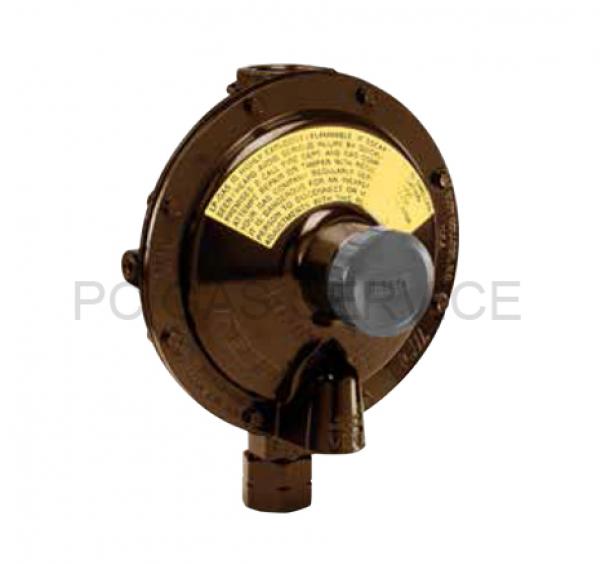

Low Pressure Second Stage Regulators LV5503B Series
Ordering Information
Inlet Connection : 3/4” F. NPT
Outlet Connection : 1” F. NPT
Orifice Size : 9/32"
Factory Delivery Pressure : 11” w.c. at 10 PSIG Inlet
Adjustment Range : 9” to 13” w.c.
Bonnet Vent Position : Over Inlet
Vapor Capacity BTU/ hr. Propane* : 2,300,000
*Maximum flow based on 10 PSIG inlet and 9” w.c. delivery pressure.
